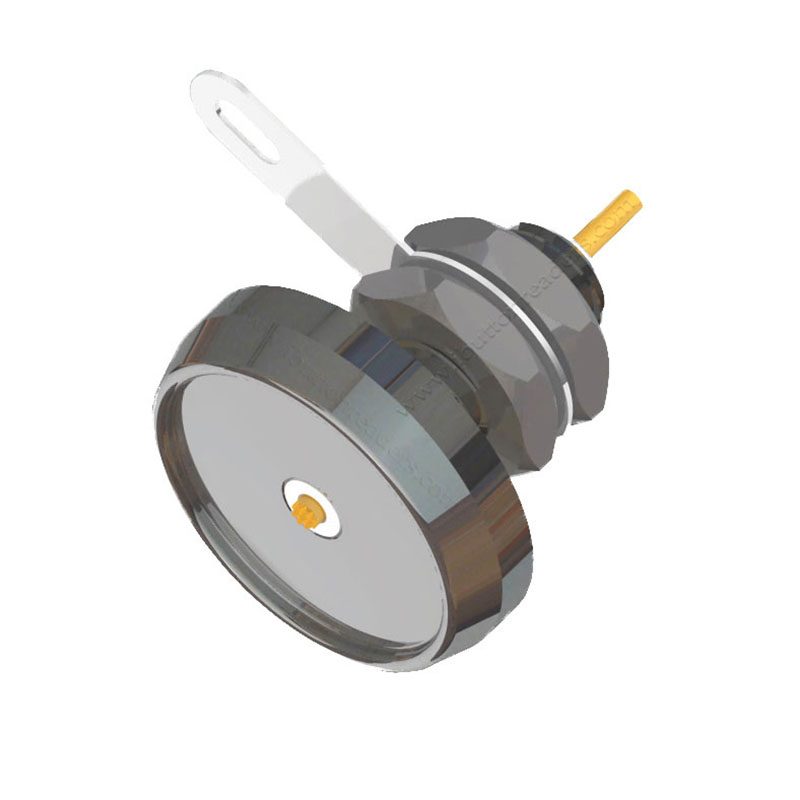

Magnetic iButton Reader with M8 Thread - CC9092M

The CC9092M is a magnetic iButton reader which has magnets inside. The reader is designed to work with iButton with an outer iron/stainless steel ring (see MG1990A keys).

Feature

MG1990A keys(iButton with outer iron ring) can stick to the reader all the time by magnetic force
Strong magnetic strength compare with other vendors
Body materials are made of brass, all metal parts are Nickel-plating
Screw mount with 2X M8 nuts(304 stainless steel)
The standard version is without cable. Cable length can be customized if needed

Application

GPS tracking / Driver authorization / identification
Access control system
EPOS system / Cash registers
Food services/restaurant industry
Computer and data processing

Compatible Keys

MG1990A

Wiring

Center pin: 1-Wire data/signal
Ground terminal: 1-Wire GND

Diagram

Technical Data

Model	CC9092M
Magnetic Strength	0.9KG(Tested with MG1990A iButtons)
Fastening method	Stainless steel M8 nuts (X2)
Weight	32g
Operating temperature	Min: -30 ºC, Max: +85 ºC
Storage temperature	Min: -40 ºC, Max: +85 ºC
